Original price was: $12,490.00.$9,900.00Current price is: $9,900.00. ex GST
| Technical Specifications | |
|---|---|
| Model Name | WPCY-01-10 (WOLF PACK Compact) |
| Engine | Yanmar 3TNV76 |
| kVA | 7.7 kVA (Maximum Standby) |
| Prime kVA (PRP) | 7 kVA |
| Standby kVA (LRP) | 7.7 kVA |
| kW | 6.9 kW (PRP) / 7.5 kW (Standby) |
| Phase | 3 |
| Fuel Type | Diesel |
| Canopy Type | Options include Open Type, Silent, or Super Silent |
| Application | Generating Sets (Power Generation) |
| Staunch Canopy Type | Galvanised Steel made chassis with Bunded fuel tank |

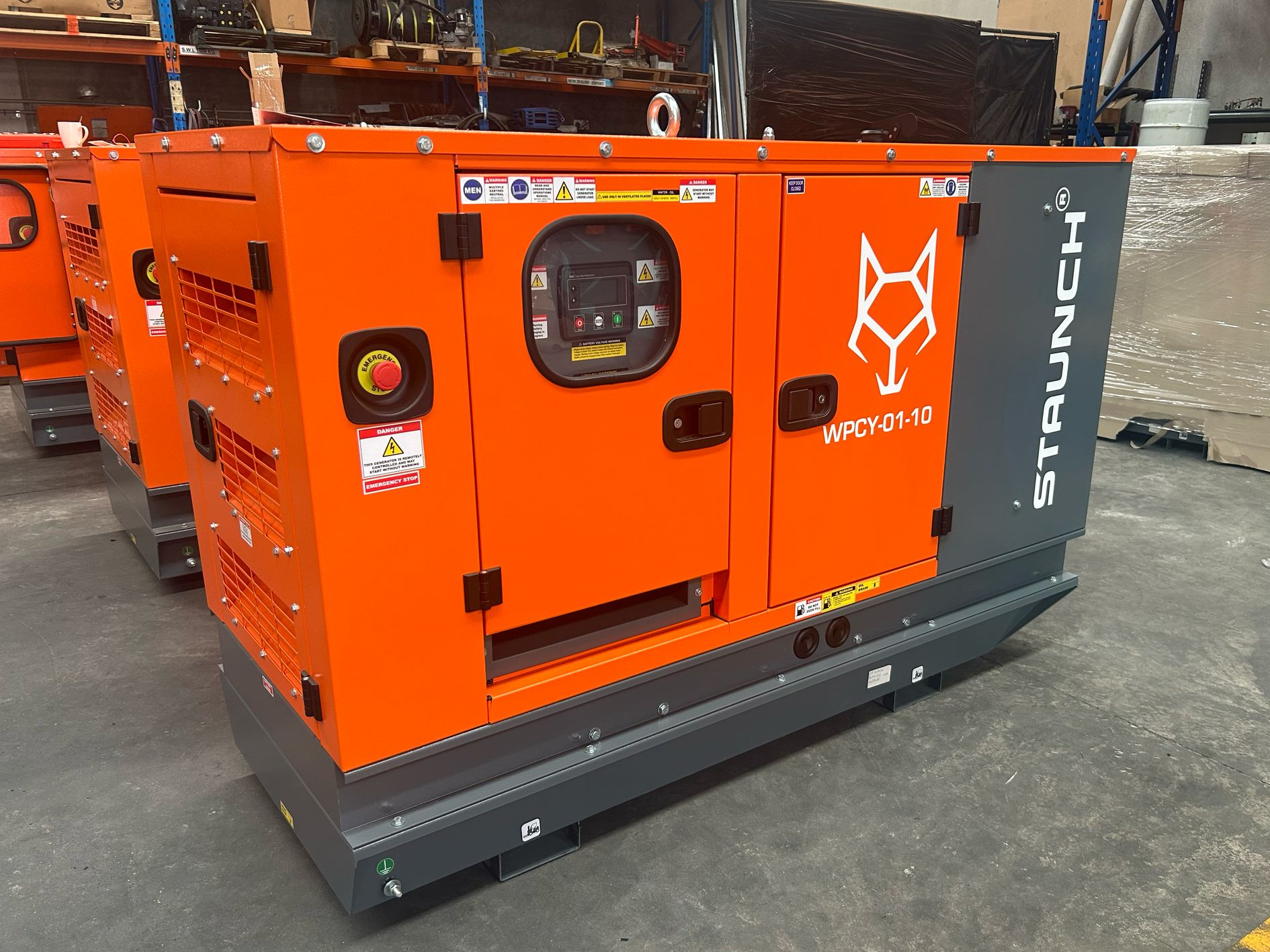

The STAUNCH WPCY-01-10 Wolf Pack Compact is a professional-grade, water-cooled diesel generator designed to provide reliable power for both prime and standby applications. Powered by a high-performance Yanmar engine, this unit is engineered for durability and efficiency in a variety of environments.
Prime Power (PRP): 7.0 kVA / 6.9 kW
Standby Power: 7.7 kVA / 7.5 kW
Standard Voltage: 240V (Available in 240/415V)
Rated Speed: 1500 r.p.m.
Fuel Consumption (100% PRP): 2.31 L/h
Fuel Autonomy (75% Load): Approximately 56 hours with a 100L fuel tank
Engine Model: Yanmar 3TNV76, 3-cylinder, 4-stroke direct injection diesel
Aspiration: Natural
Alternator: Leroy Somer/Staunch TAL040C/STA 164C (4-pole, self-excited, brushless)
Cooling System: Water-cooled with radiator and blowing fan
Governor: Mechanical type
Equipped with the Deep Sea 4520 Auto-start Control Panel, providing comprehensive monitoring and protection:
Digital Measurements: Phase/Neutral voltage, current (Amps), frequency, power factor, and engine speed
Engine Alarms: High coolant temperature, low oil pressure, battery charge failure, and over/underspeed
Genset Alarms: Over-load, short-circuit, and unbalanced/over/under voltage
Interface: Multilingual support including English, French, Portuguese, German, and Chinese
| Feature | Open Type | Silent | Super Silent |
| Length (mm) |
1600 |
1800 |
2250 |
| Height (mm) |
1186 |
1330 |
1670 |
| Width (mm) |
750 |
750 |
900 |
| Dry Weight (kg) |
369 |
650 |
900 |
| Noise (@7m) |
N/A |
66.0 dB |
56 dB |
Safety First: Emergency stop button and main line circuit breaker for overload protection
Robust Design: Galvanized steel chassis with anti-vibration shock absorbers
Outlets: Includes 3 x 15Amp sockets and 1 x 32Amp RCD protected outlet
Maintenance: Features a water separator decanting filter and bunded fuel tank with drain
