Pramac GSW45Y 43.03kVA 3P Diesel Generator

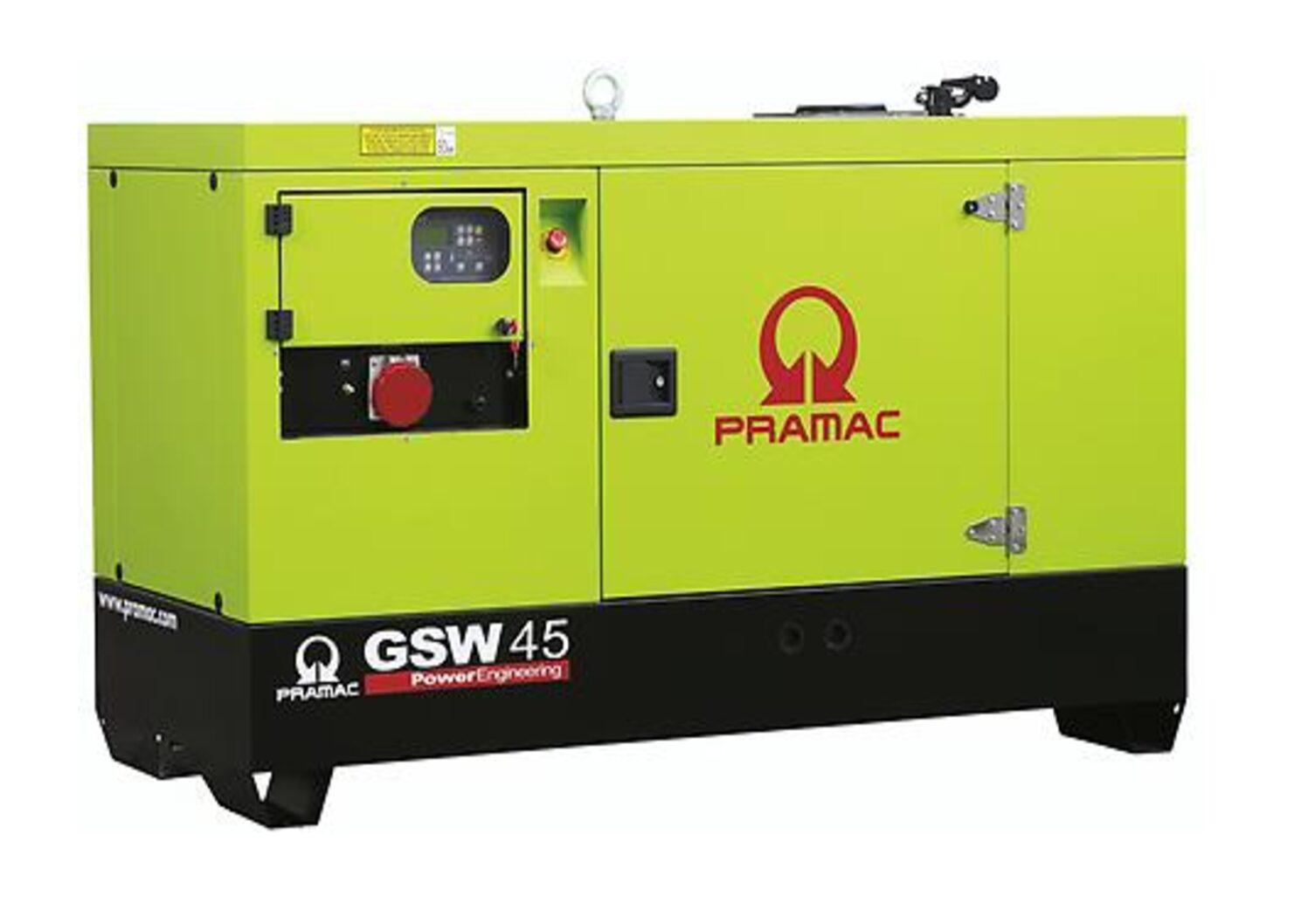

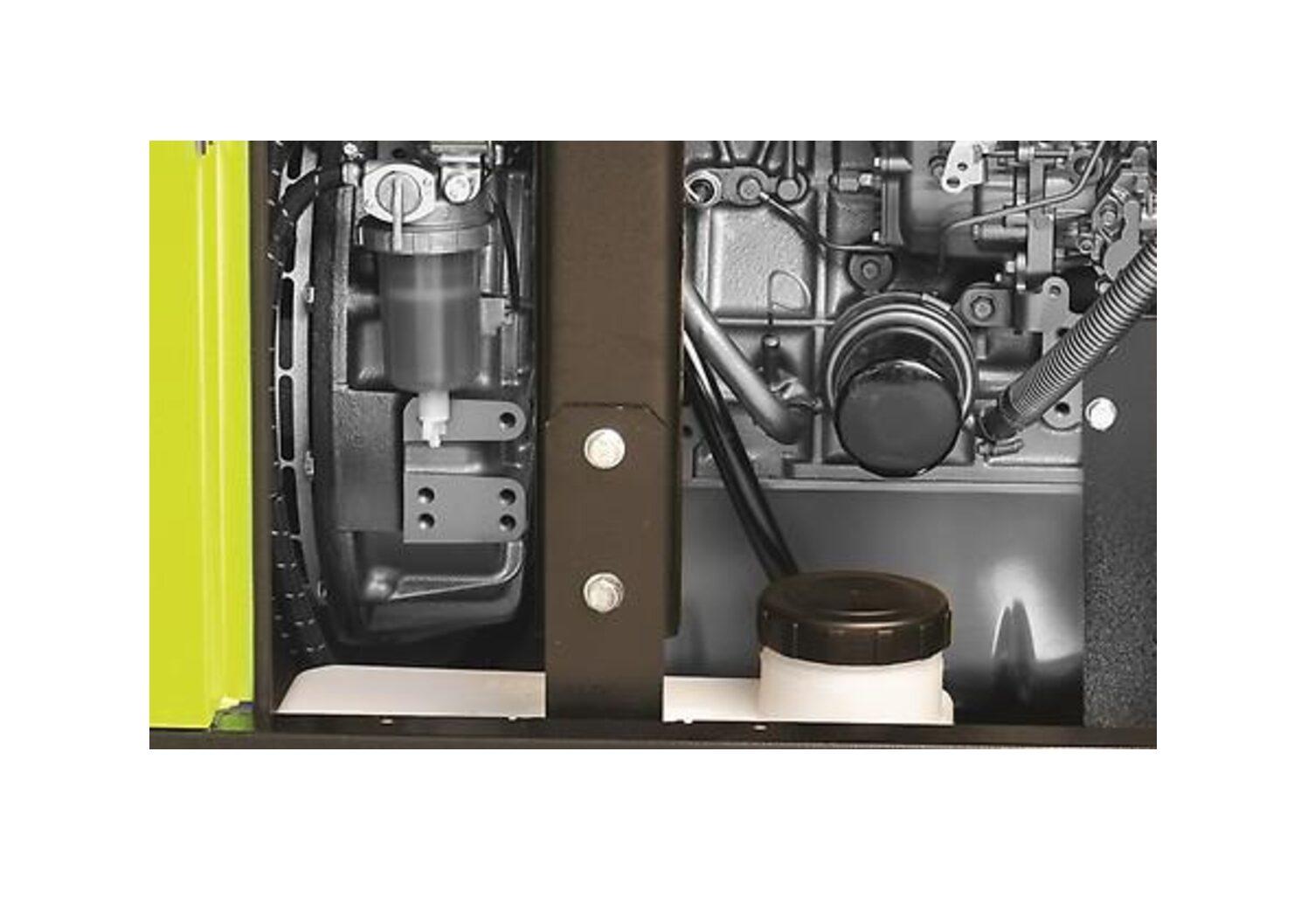

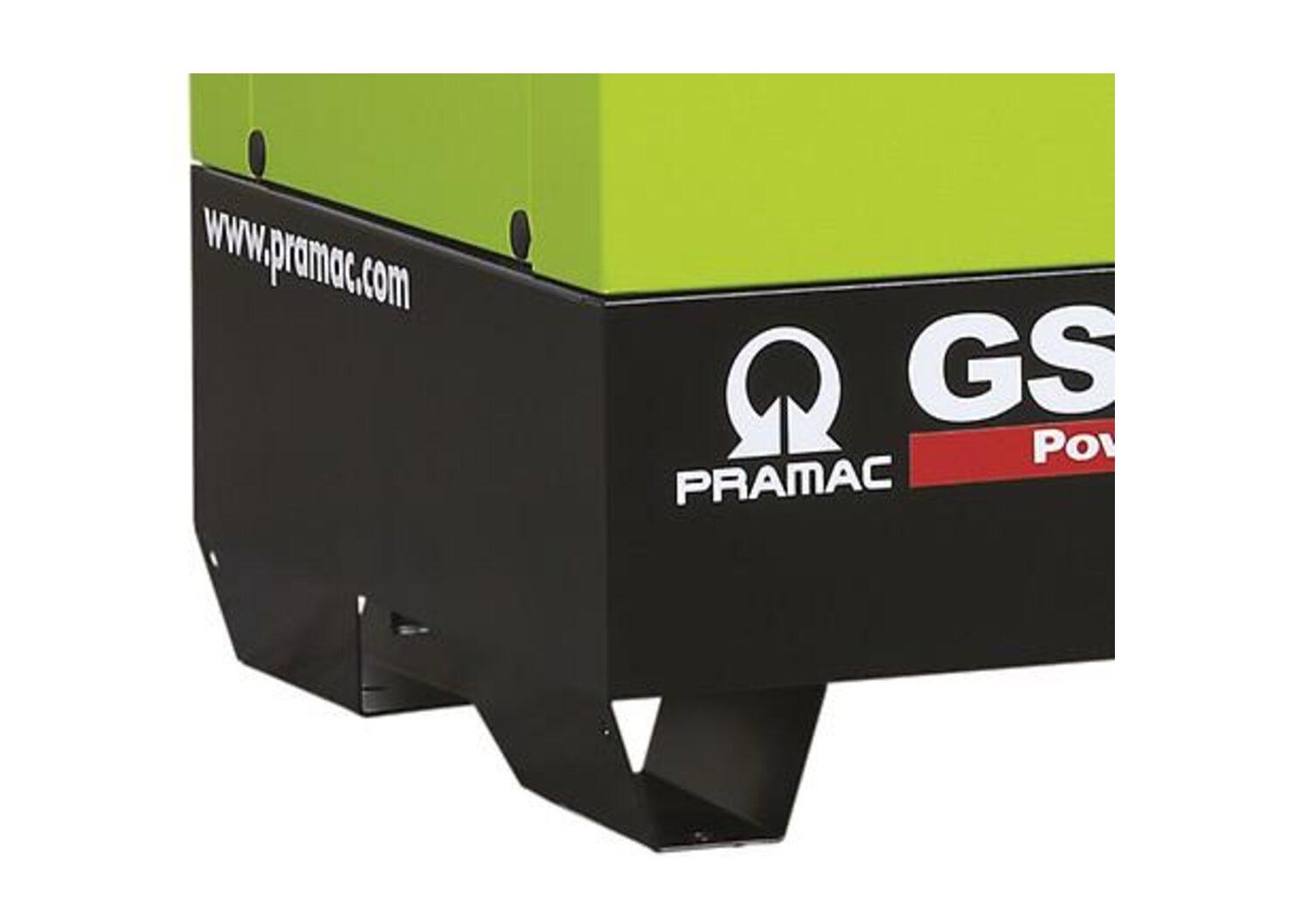

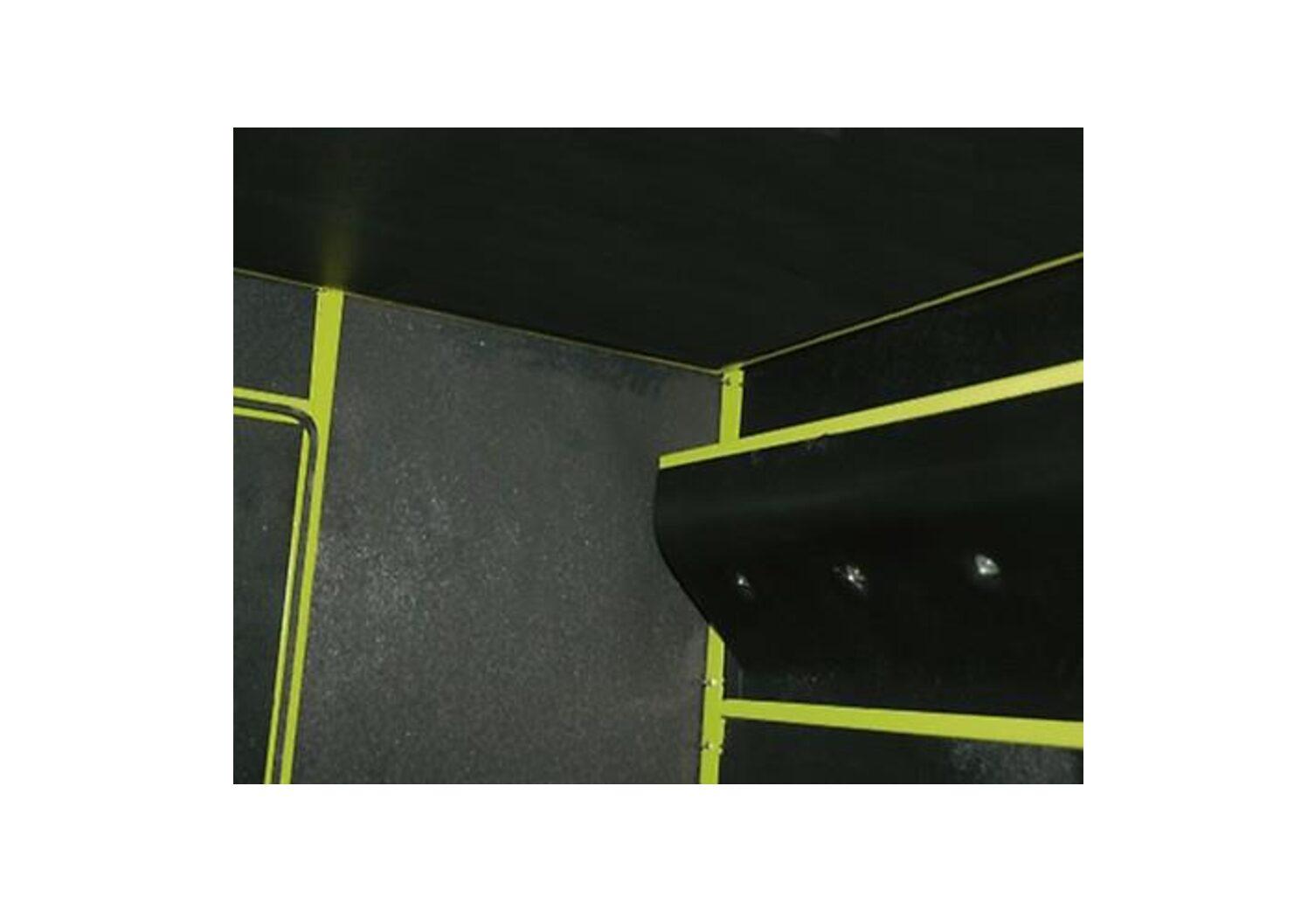

Pramac GSW45Y 43.03kVA 3P Diesel Generator SKU: GSW45Y Description The GSW45Y is a three phase canopy model ideal for standby power in off grid and on grid applications, delivering 45.33 kVA power. The Yanmar diesel engine is of high quality and Mecc Alte alternator is made in Italy. They are superbly complimented by a robust, weatherproof enclosure and state of the art digital control panel. The 68L litre fuel tank provides more than 8.38 hours of run time at a 75% load. The canopy’s internal polyurethane foam lining sound-proofs the unit to a level of 66dBA at a seven metre distance. A solid steel base frame with integrated supported legs and vibration resistant mounts is complimented by a hinged soundproof canopy fitted with pneumatic arms permitting convenient access to the working genset for any required maintenance. The Pramac units come fully pre-delivered in Australia and are comprehensively tested before supplying to the customer. Features Stand By Power LTP kW/kVA: 36.26 / 45.33 Prime Power PRP kW/kVA: 34.42 / 43.03 Voltage Volt/Frequency Hz: 400 / 50 Phase: Three Engine Brand: Yanmar Engine Model: 4TNV98T-GPGE Engine Cooling System: Water Fuel: Diesel Number and Disposition of Cylinders: 4 in line Displacement : 3319 cm3 Engine Aspiration: Turbocharged Engine Speed Governor: Mechanical Prime Gross Power PRP kW: 39.7 Maximum gross power LTP ESP kW: 41.8 Fuel Consumption at 75% / 100% PRP L/h : 231 g/kWh at 75% Load Alternator Type: Mecc Alte Alternator Poles: 4 Overall Dimension: 2000mm (L) x 920mm(W) 1310mm (H) Net Weight (kg): 795.0 Kg Fuel Tank Capacity: 68L Inverter technology Sound attenuated canopy Low noise levels Energy-saving operation Lightweight compact design Terminal weight compact design Terminal for AMF/ATS panels Excellent wave form Ideal for sensitive electronic equipment Integral RCD Circuit breaker protection Quality sound attenuated canopy Power and transportable Optional larger capacity fuel tank on all models All self-contained and fully bunded M7 control panel 2 wire auto start provision as standard
