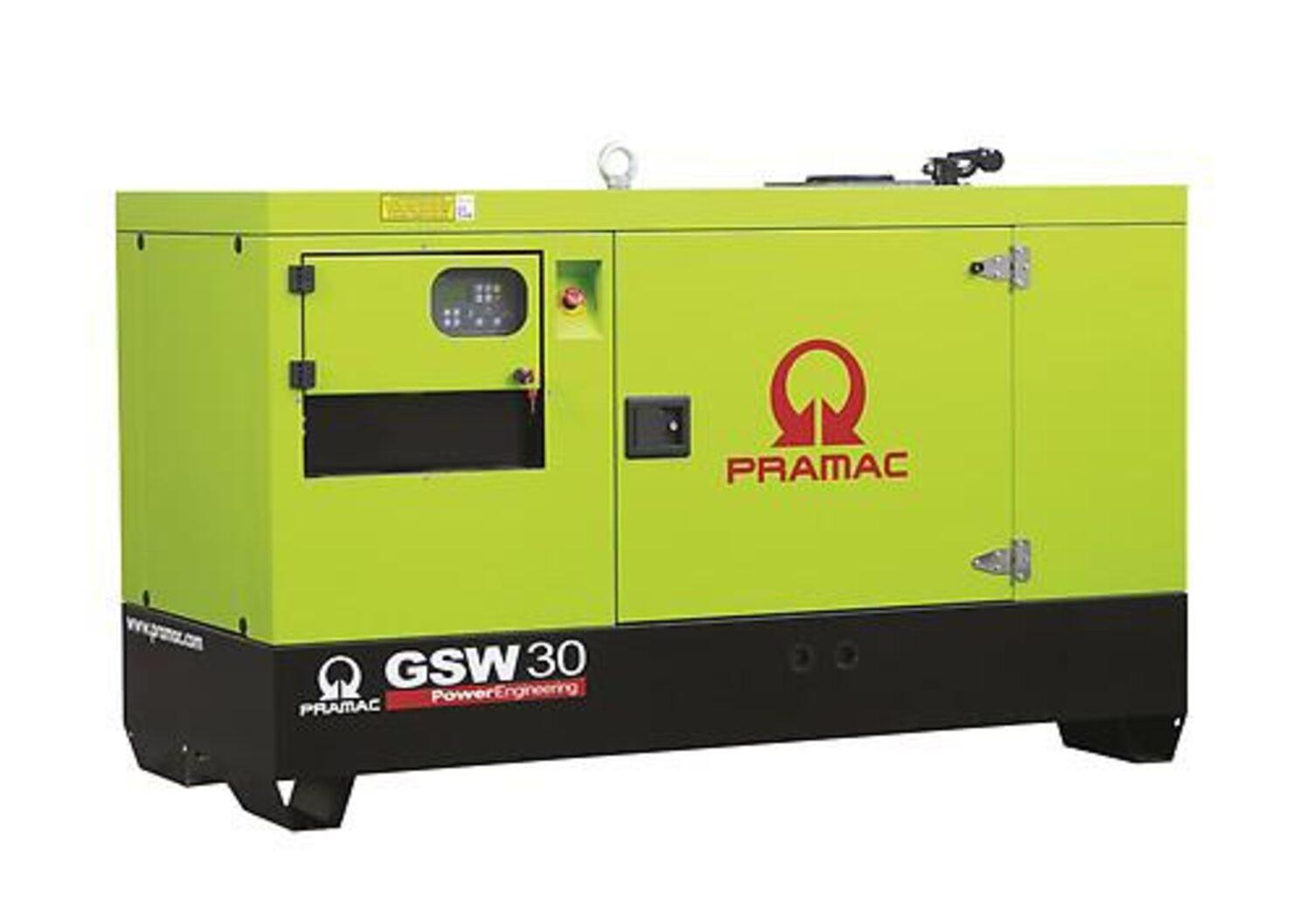

Pramac GSW30P 30.5kVA 3P Diesel Generator

  • High-quality Perkins diesel engine and Italian Mecc Alte alternator
  • Sound-proofed canopy with 64dBA noise level at seven metres
  • Extended 12.57-hour run time at 75% load with 68L fuel tank
  • Robust, weatherproof enclosure with hinged access and pneumatic arms
  • State-of-the-art digital control panel and AVR protection

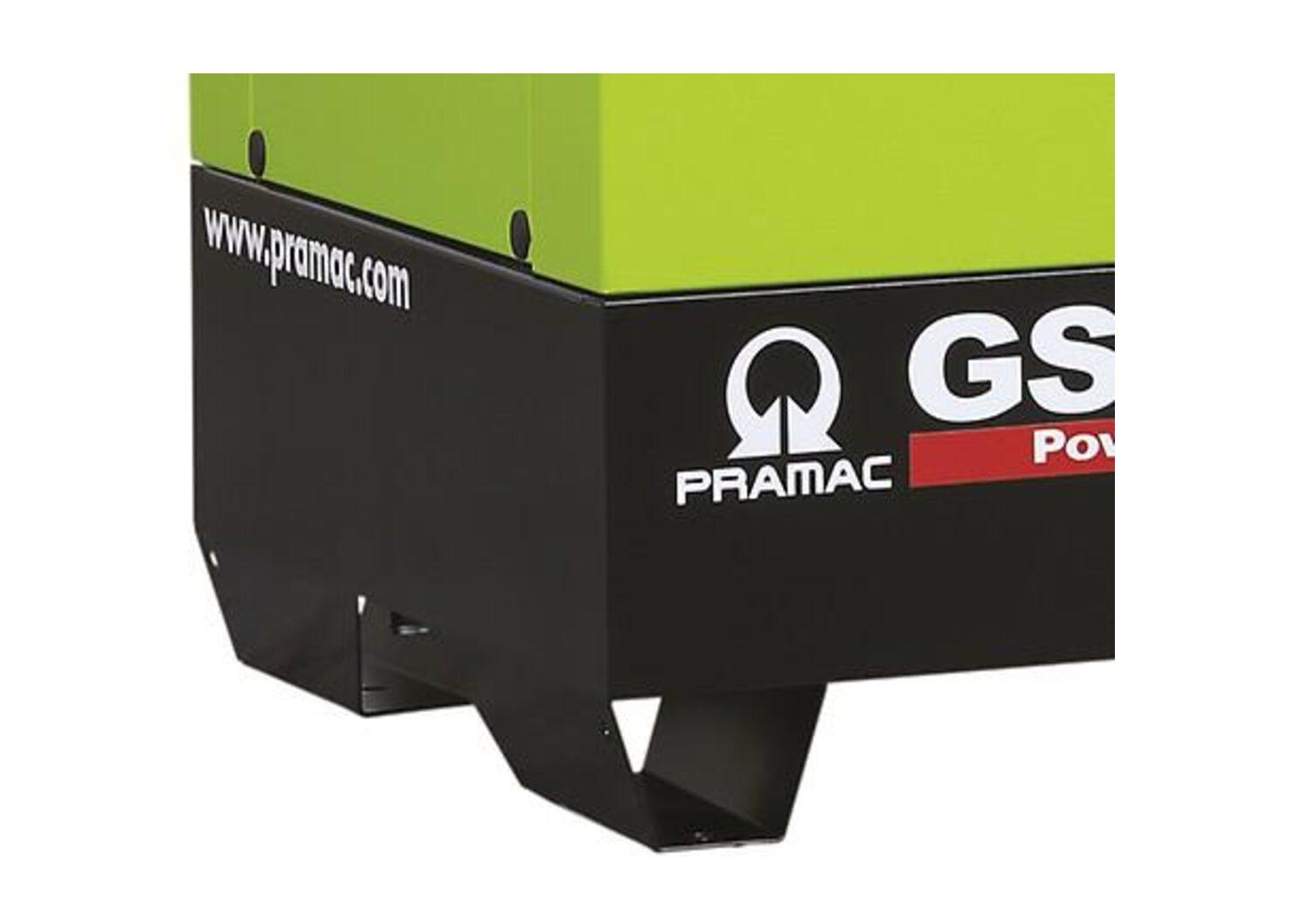

  • Low vibration design with isolation mounts and full roll frame
  • Integral RCD circuit breaker and low oil shutdown
SKU: GSW30P Category: Brand:
Technical Specifications
Model NameGSW30P
EnginePerkins
kVA30.5
Prime kVA (PRP)30.5
Standby kVA (LRP)32.50
kW24.40
Phase3
Fuel TypeDiesel
Canopy TypeSilent
ApplicationStandby

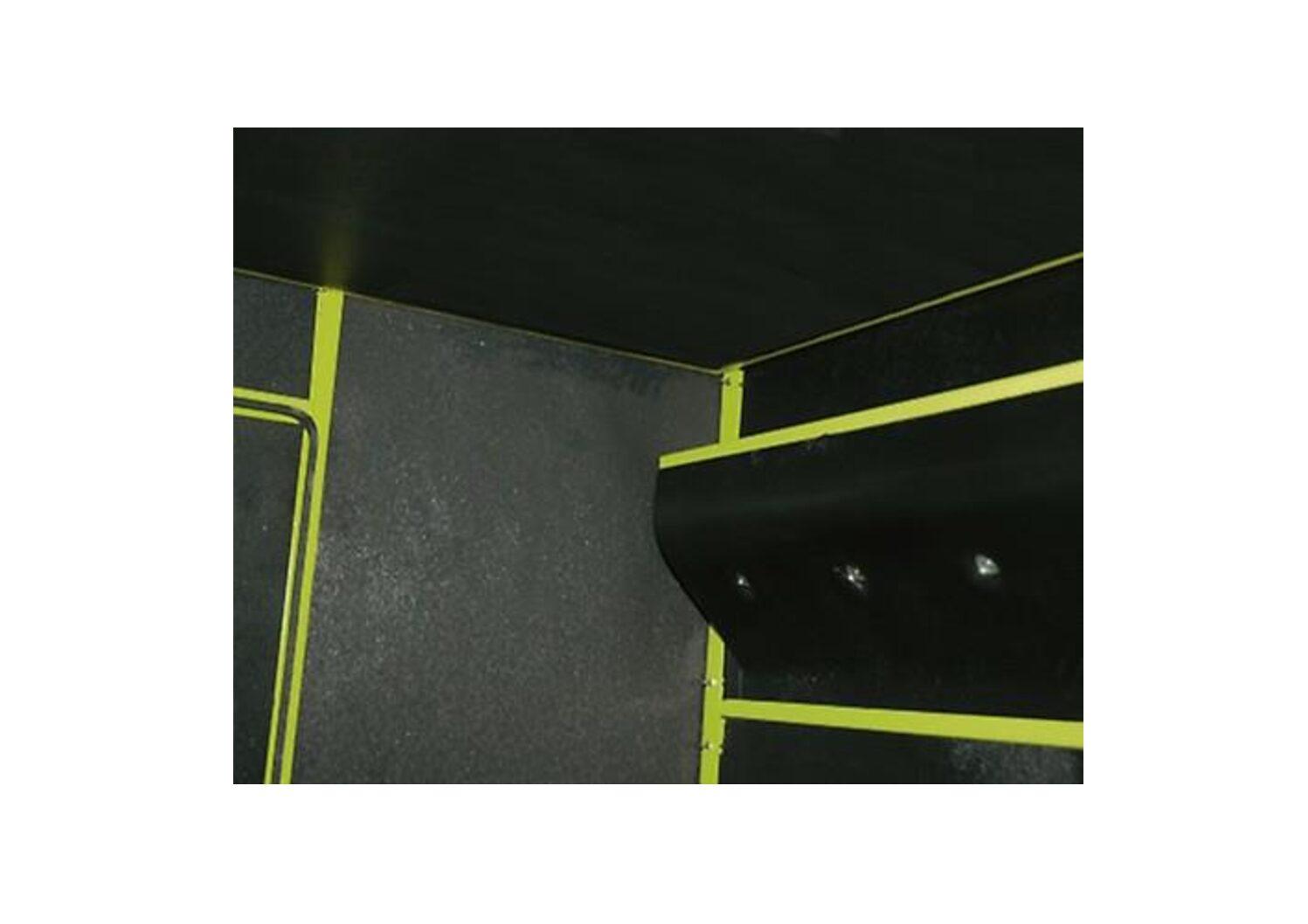

Pramac GSW30P 30.5kVA 3P Diesel Generator SKU: GSW30P Description The GSW30P is a three phase canopy model ideal for standby power in off grid and on grid applications, delivering 32.50 kVA power. The Perkins diesel engine is of high quality and Mecc Alte alternator is made in Italy. They are superbly complimented by a robust, weatherproof enclosure and state of the art digital control panel. The 68L litre fuel tank provides more than 12.57 hours of run time at a 75% load. The canopy’s internal polyurethane foam lining sound-proofs the unit to a level of 64dBA at a seven metre distance. A solid steel base frame with integrated supported legs and vibration resistant mounts is complimented by a hinged soundproof canopy fitted with pneumatic arms permitting convenient access to the working genset for any required maintenance. The Pramac units come fully pre-delivered in Australia and are comprehensively tested before supplying to the customer. Features Stand By Power LTP kW/kVA: 26.00 / 32.50 Prime Power PRP kW/kVA: 24.40 / 30.50 Voltage Volt/Frequency Hz: 400 / 50 Phase: Three Engine Brand: Perkins Engine Model: 1103A-33G Engine Cooling System: Water Fuel: Diesel Number and Disposition of Cylinders: 3 in line Displacement : 3300 cm3 Engine Aspiration: Natural Engine Speed Governor: Mechanical Prime Gross Power PRP kW: 28.2 Maximum Gross Power LTP kW: 31 Fuel Consumption at 75% / 100% PRP L/h : 214.5 g/kWh at 75% Load Alternator Type: Mecc Alte Alternator Poles: 4 Overall Dimension: 2000mm (L) x 920mm(W) 1310mm (H) Net Weight (kg): 877.0 Kg Fuel Tank Capacity: 68L Genuine Yanmar quality and reliability Low oil shutdown Voltage meter Integral RCD circuit breaker protection Automatic voltage regulation (AVR) 12 volt – 8.3 amp simultaneous battery charging capability Battery cables and battery included on electric start models Visual fuel level gauge located on tank Low vibration design utilizing isolation mounts between engine/alternator assembly and frame Full roll frame protection
