Pramac GSW22P (ALT.P) 19.32kVA 3P Diesel Generator

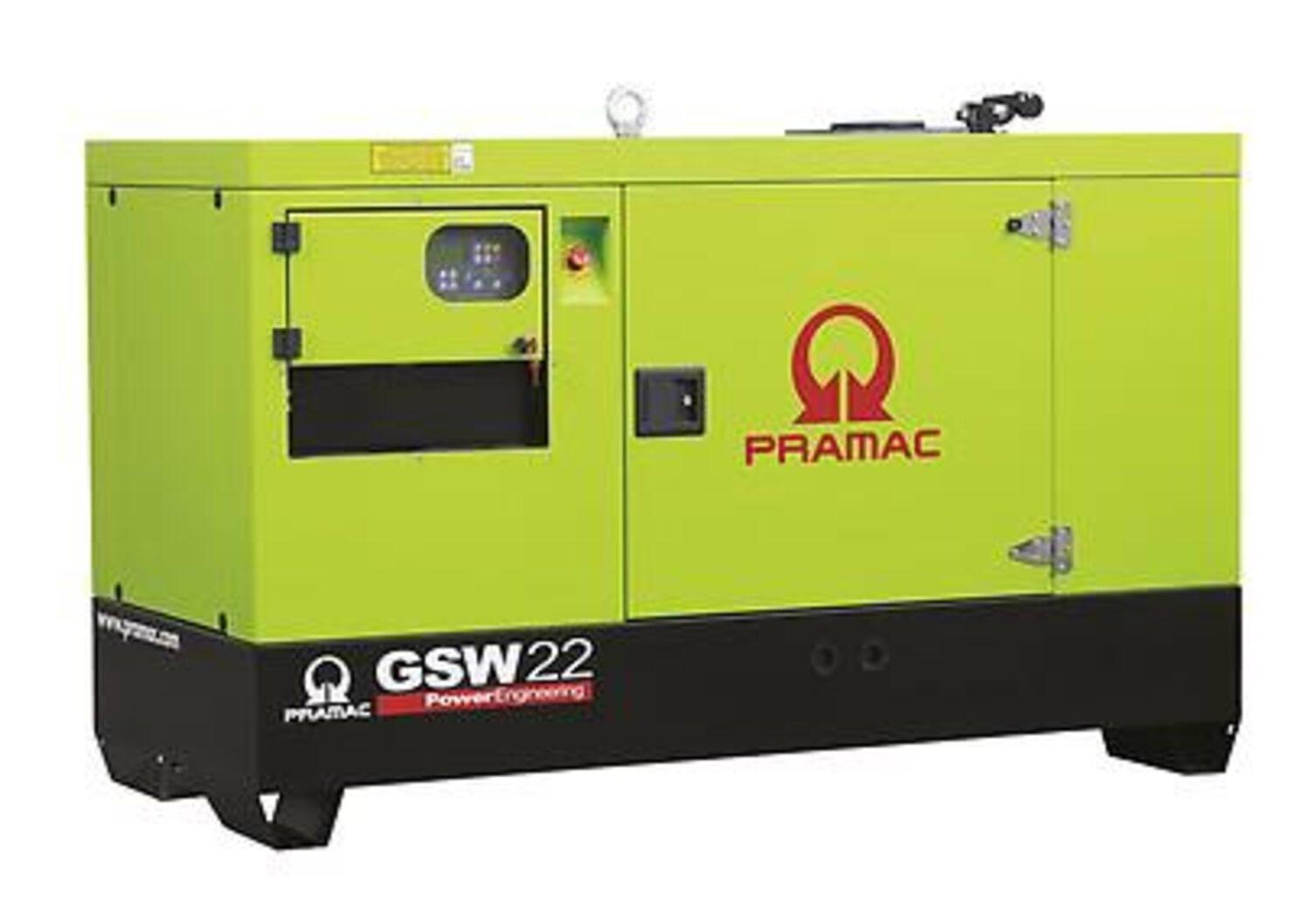

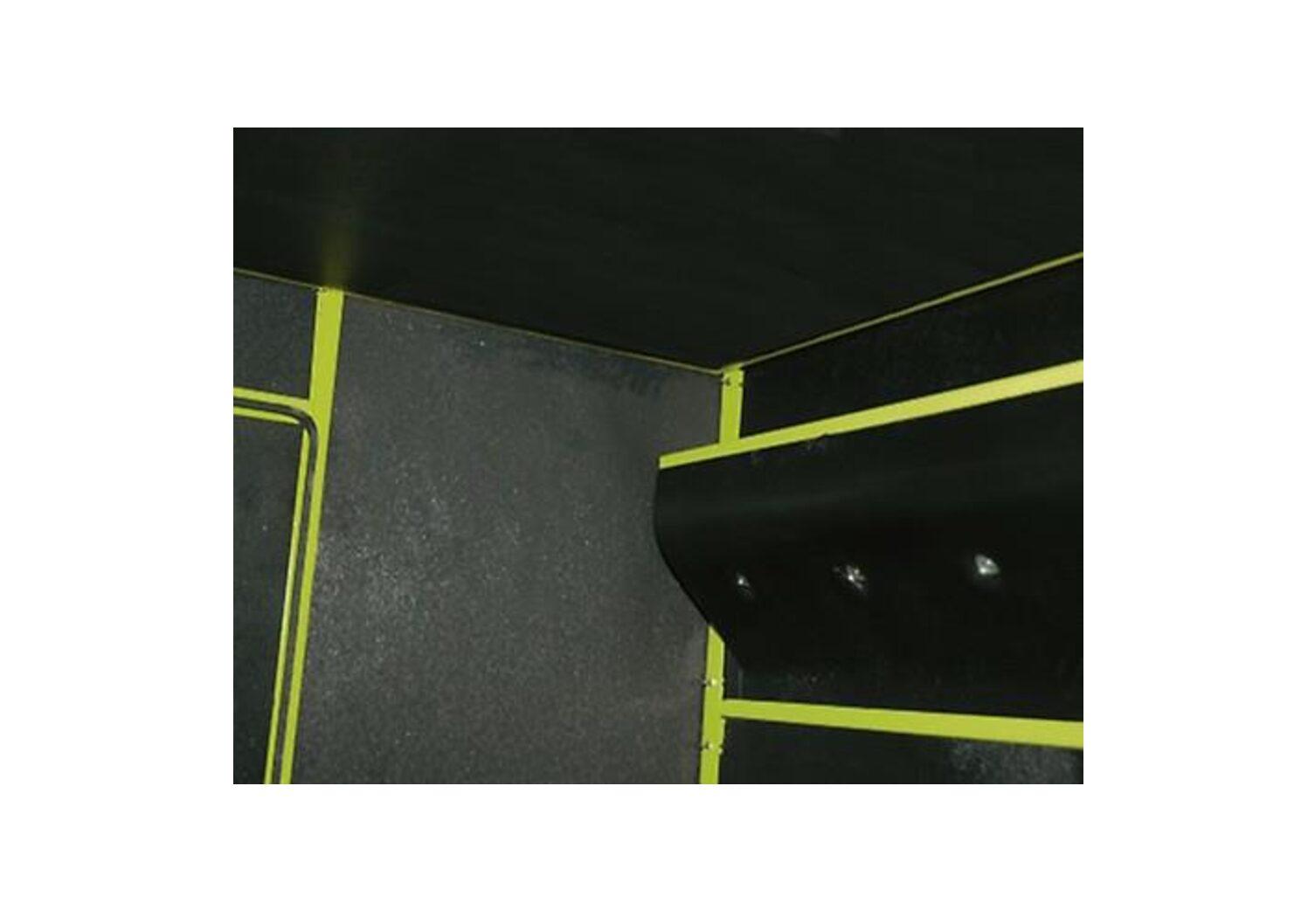

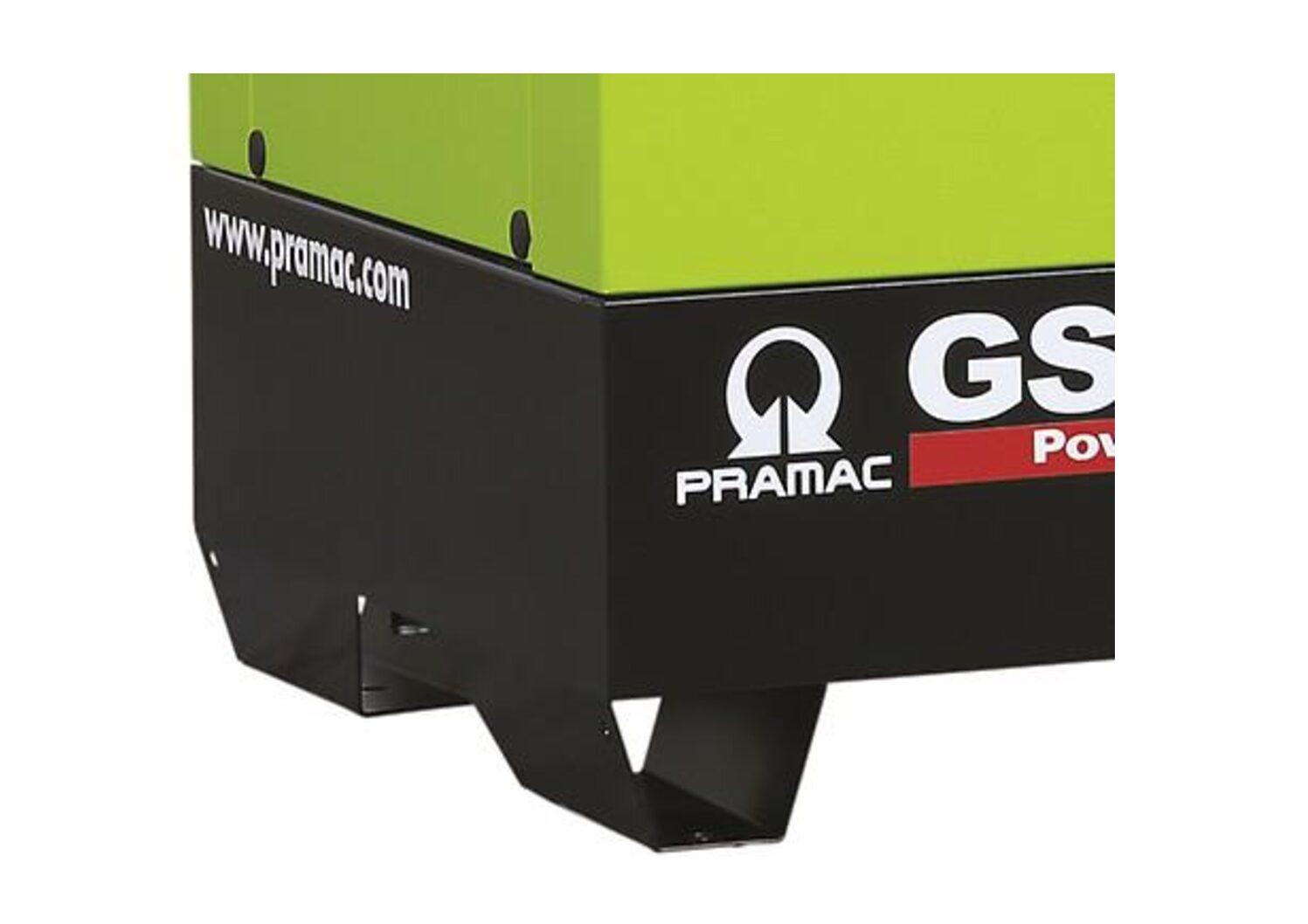

Pramac GSW22P (ALT.P) 19.32kVA 3P Diesel Generator SKU: GSW22P (ALT. P) Description The GSW22P is a three phase canopy model ideal for standby power in off grid and on grid applications, delivering 21.00 kVA power. The Perkins diesel engine is of high quality and Pramac alternator is made in Italy. They are superbly complimented by a robust, weatherproof enclosure and state of the art digital control panel. The 68L litre fuel tank provides more than 17.35 hours of run time at a 75% load. The canopy’s internal polyurethane foam lining sound-proofs the unit to a level of 58dBA at a seven metre distance. A solid steel base frame with integrated supported legs and vibration resistant mounts is complimented by a hinged soundproof canopy fitted with pneumatic arms permitting convenient access to the working genset for any required maintenance. The Pramac units come fully pre-delivered in Australia and are comprehensively tested before supplying to the customer. Features Stand By Power LTP kW/kVA: 16.80 / 21.00 Prime Power PRP kW/kVA: 15.46 / 19.32 Voltage Volt/Frequency Hz: 400 / 50 Phase: Three Engine Brand: Perkins Engine Model: 404D-22G Engine Cooling System: Water Fuel: Diesel Number and Disposition of Cylinders: 4 in line Displacement : 2216 cm3 Engine Aspiration: Natural Engine Speed Governor: Mechanical Prime Gross Power PRP kW: 18.7 Maximum Gross Power LTP kW: 20.6 Fuel Consumption at 75% / 100% PRP L/h : 238 g/kWh at 75% Load Alternator Type: Pramac Alternator Poles: 4 Overall Dimension: 1800mm (L) x 850mm(W) 1260mm (H) Net Weight (kg): 715.0 Kg Fuel Tank Capacity: 68L Quality sound attenuated canopy Power and transportable Optional larger capacity fuel tank on all models All self-contained and fully bunded M7 control panel 2 wire auto start provision as standard
