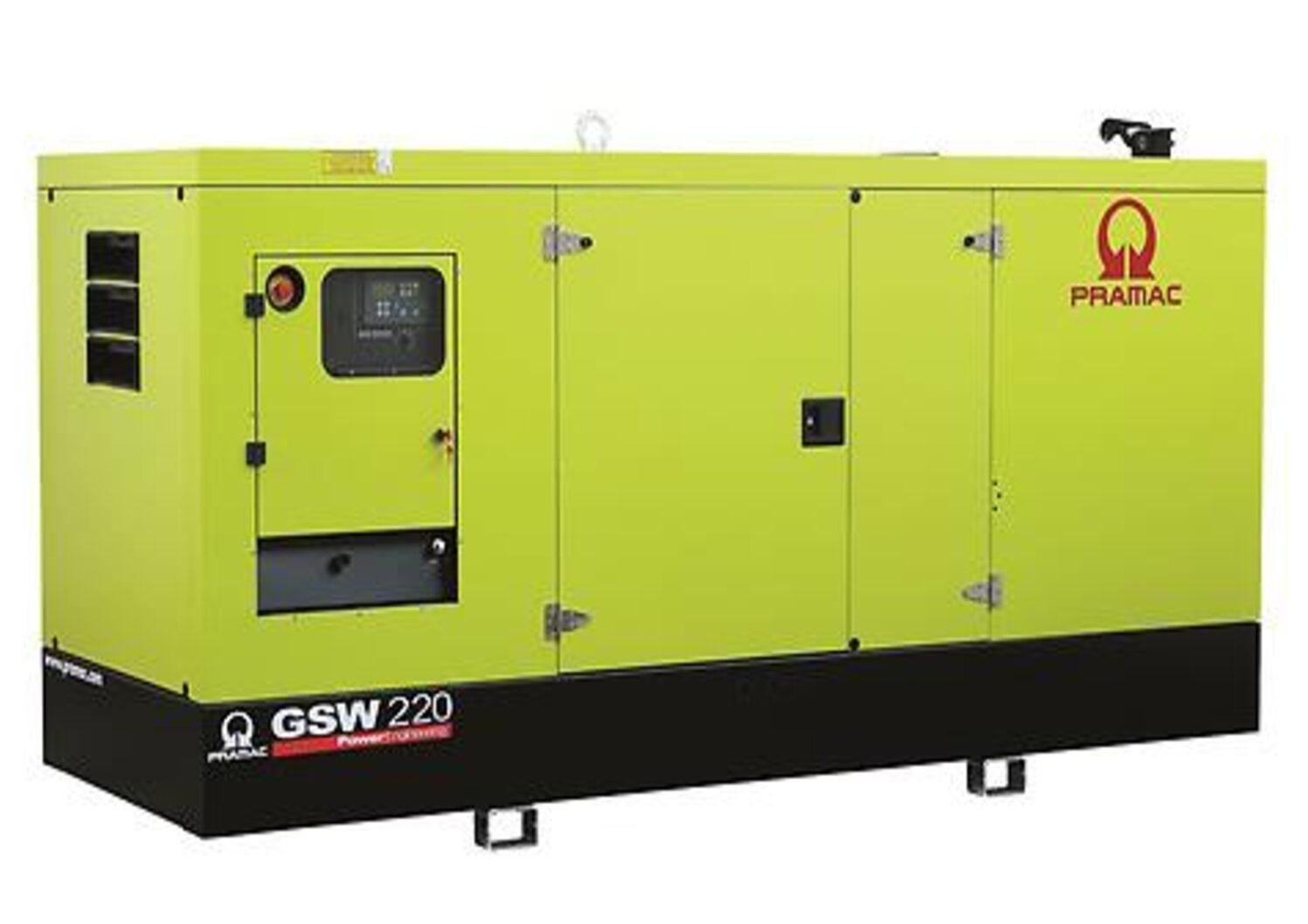

Pramac GSW-220P 201.51kVA 3P Diesel Generator

Pramac GSW-220P 201.51kVA 3P Diesel Generator SKU: GSW220P Description The GSW220P is a three phase canopy model ideal for standby power in off grid and on grid applications, delivering 220.00kVA power. The Perkins diesel engine is of high quality and Mecc Alte alternator is made in Italy. They are superbly complimented by a robust, weatherproof enclosure and state of the art digital control panel. The 360L litre fuel tank provides more than 10.41 hours of run time at a 75% load. The canopy’s internal polyurethane foam lining sound-proofs the unit to a level of 68dBA at a seven metre distance. The soundproof canopy is made up of modular panels realised with zinced steel as treatment against corrosion and aggressive conditions, properly fixed and sealed allowing a full weatherproof enclosure including air vents and exhaust fan. There is easy access to the genset for maintenance purposes assisted by wide lateral access doors fixed by stainless steel hinges and provided with plastic lockable handles and internal galvanised steel sheet. The control panel allows for full operation and monitoring through analogue and leading technology digital instrumentation. Genset comes with comprehensive safety features comprising alarm/shutdown for low oil, over temperature and voltage control protection. The Pramac units come fully pre-delivered in Australia and are comprehensively tested before supplying to the customer. Features Stand By Power LTP kW/kVA: 176.00/ 220.00 Prime Power PRP kW/kVA: 161.21/ 201.51 Voltage Volt/Frequency Hz: 400 / 50 Phase: Three Engine Brand: Perkins Engine Model: 1106A-70TAG4 Engine Cooling System: Water Fuel: Diesel Number and Disposition of Cylinders: 6 in line Displacement : 7000 cm3 Engine Aspiration: Turbocharged Engine Speed Governor: Electronic Prime Gross Power PRP kW: 178.90 Maximum gross power LTP ESP kW: 196.3 Fuel Consumption at 75% / 100% PRP L/h : 215 g/kWh at 75% Load Alternator Type: Mecc Alte Alternator Poles: 4 Overall Dimension: 3400mm (L) x 1250mm(W) 1770mm (H) Net Weight (kg): 2340.0 Kg Fuel Tank Capacity: 360L Quality sound attenuated canopy Power and transportable Optional larger capacity fuel tank on all models All self-contained and fully bunded M7 control panel 2 wire auto start provision as standard Quality sound attenuated canopy Power and transportable Optional larger capacity fuel tank on all models All self-contained and fully bunded M7 control panel 2 wire auto start provision as standard
