Pramac GSW-110P 103.84kVA 3P Diesel Generator

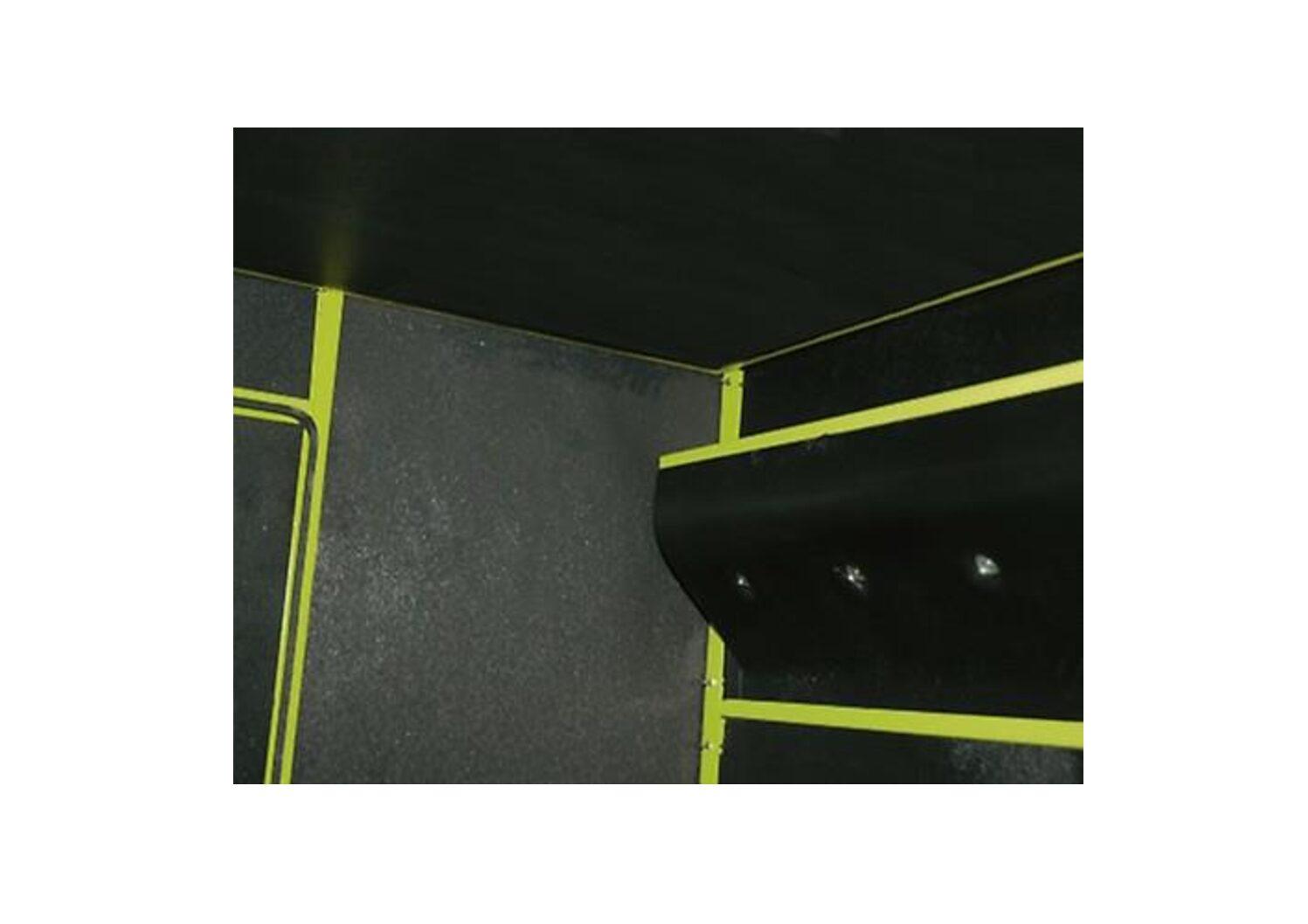

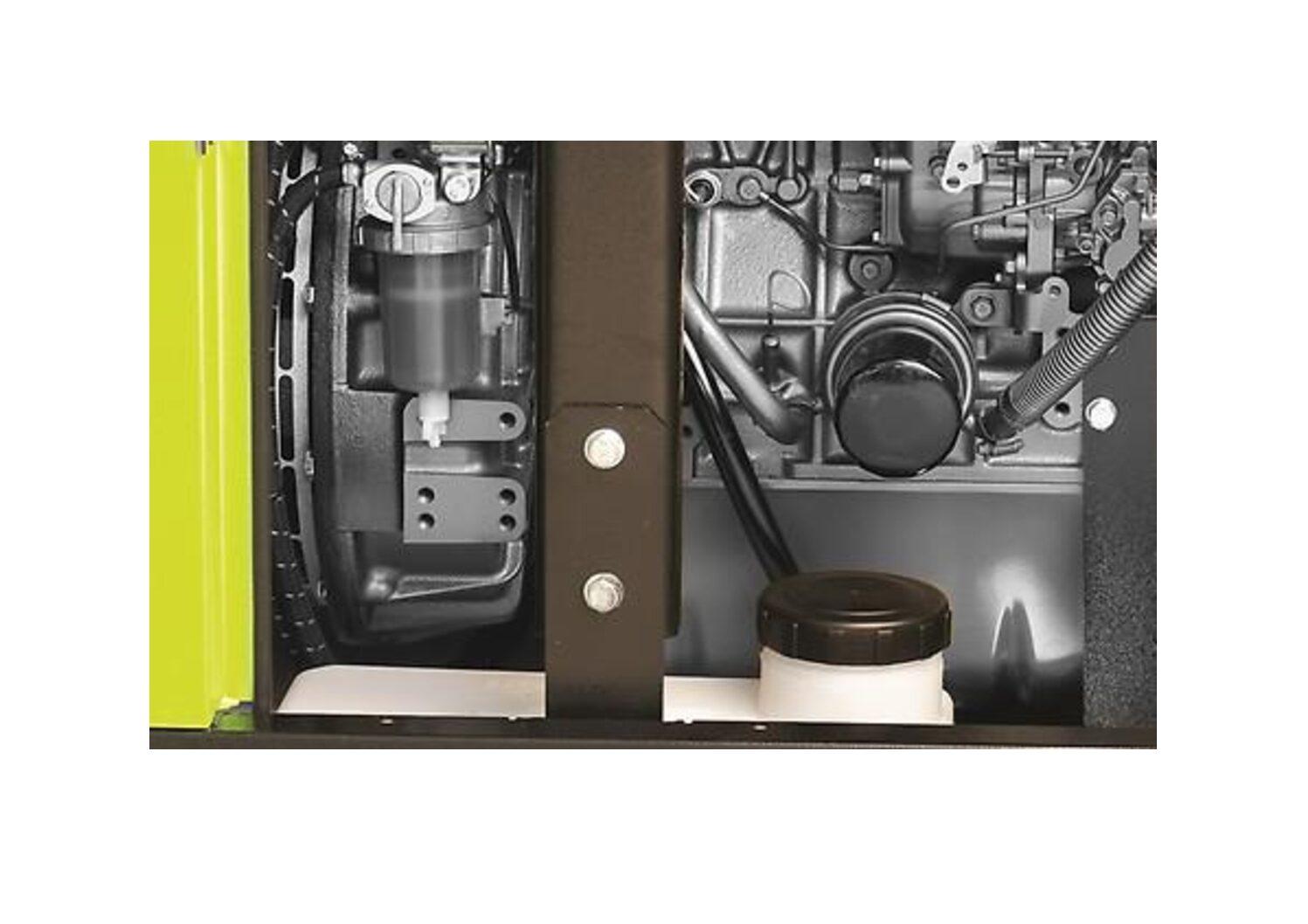

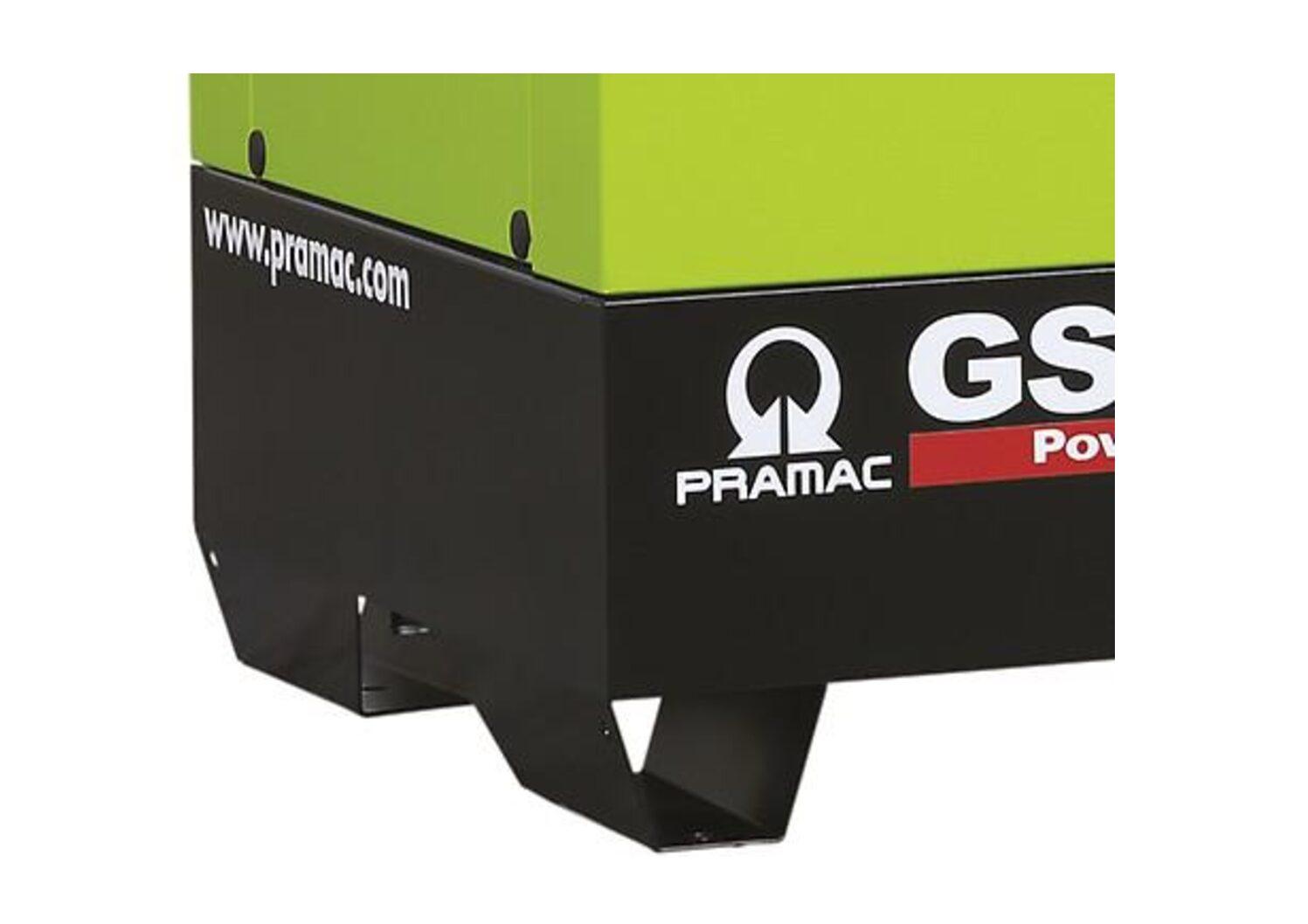

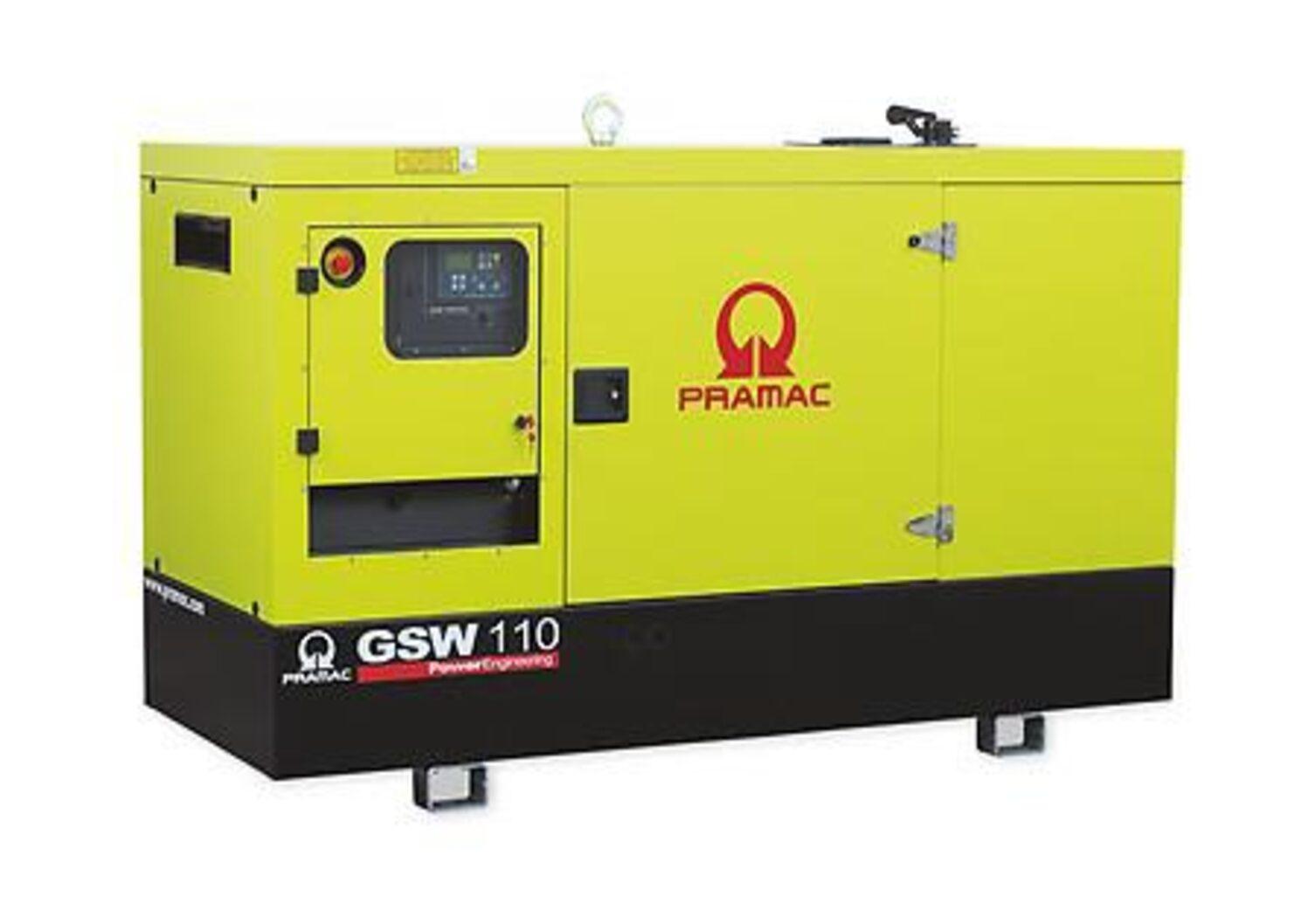

Pramac GSW-110P 103.84kVA 3P Diesel Generator SKU: GSW-110P Description The GSW-110P is a three phase canopy model ideal for standby power in off grid and on grid applications, delivering 103.84kVA power. The Perkins diesel engine is of high quality and Mecc Alte alternator is made in Italy. They are superbly complimented by a robust, weatherproof enclosure and state of the art digital control panel. The 209L litre fuel tank provides more than 11.6 hours of run time at a 75% load. The canopy’s internal polyurethane foam lining sound-proofs the unit to a level of 67dBA at a seven metre distance. The soundproof canopy is made up of modular panels realised with zinced steel as treatment against corrosion and aggressive conditions, properly fixed and sealed allowing a full weatherproof enclosure. There is easy access to the genset for maintenance purposes assisted by wide lateral access doors fixed by stainless steel hinges and provided with plastic lockable handles and internal galvanised steel sheet. The Pramac units come fully pre-delivered in Australia and are comprehensively tested before supplying to the customer. Features Stand By Power LTP kW/kVA: 91.74/ 114.67 Prime Power PRP kW/kVA: 83.07/ 103.84 Voltage Volt/Frequency Hz: 400 / 50 Phase: Three Engine Brand: Perkins Engine Model: 1104A-44TAG2 Engine Cooling System: Water Fuel: Diesel Number and Disposition of Cylinders: 4 in line Displacement : 4410 cm3 Engine Aspiration: Turbocharged Engine Speed Governor: Electronic Prime Gross Power PRP kW: 93.6 Maximum gross power LTP ESP kW: 103 Fuel Consumption at 75% / 100% PRP L/h : 213.6 g/kWh at 75% Load Alternator Type: Mecc Alte Alternator Poles: 4 Overall Dimension: 2400mm (L) x 1000mm(W) 1530mm (H) Net Weight (kg): 1400.0 Kg Fuel Tank Capacity: 209L Inverter technology Sound attenuated canopy Low noise levels Energy-saving operation Lightweight compact design Terminal weight compact design Terminal for AMF/ATS panels Excellent wave form Ideal for sensitive electronic equipment Integral RCD Circuit breaker protection Genuine Yanmar quality and reliability Low oil shutdown Voltage meter Integral RCD circuit breaker protection Automatic voltage regulation (AVR) 12 volt – 8.3 amp simultaneous battery charging capability Battery cables and battery included on electric start models Visual fuel level gauge located on tank Low vibration design utilizing isolation mounts between engine/alternator assembly and frame Full roll frame protection
